Compression Tube Fittings
Principle and Working of Tube Fittings
Venus Engineering’s range of Double Ferrule Compression Fittings work on the proven principle of two ferrules swaging to the tube when tighten up. As the nut is tightened the front ferrule swages on to the tube making a prominent leak-proof seal and the back ferrule makes a positive impression on the tube. Available in numerous configurations and sizes. We are proven manufacturer and exported of wide range of Double Ferrule Compression Fittings .

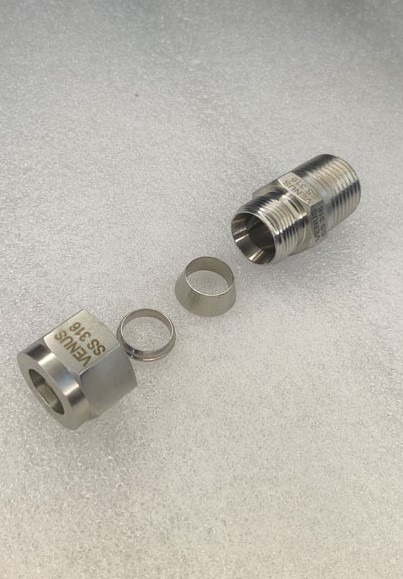

Tube Fittings are made up of four parts consisting of a body, front ferrule, back ferrule, and nut. Outstanding leak-tight connections are consistent as the two-ferrule design compensates for any tolerances in tube outer diameter, wall, thickness, and material hardness.
Advantages of Compression fittings
Low Torque Design
Our stainless steel Compression fittings feature low-torque offer ease in assembly . It can be tightened by a simple wrench
Two Ferrule Design
Front and Back Ferrule or twin ferrule or double ferrule work in cohesion to give excellent grip on the tubes .
Leak-tight connections of Double Ferrule Compression Tube Fittings
Even in systems having high vibration or rapid temperature and pressure fluctuations.
Material availability for Tube Fittings
Tube Fittings are available in Stainless Steel 304 ( SS 304 ), Stainless Steel 316 ( SS 316) , Brass, Carbon Steel, Titanium Grade 2 , Monel 400 , Monel 500 , Hastelloy C 276, Incoloy 800 ( Alloy 800 ), Inconel 600, Inconel 625 , Inconel 825, Duplex 2205 and Duplex 32750 .
How Compression Fittings are made
Straight fittings are machined from cold finished bar stock and shaped bodies are machined from close grain forgings. The raw materials used fully conform to the chemical requirements of one or more of the specifications listed.
Compression Tube Fittings Applications ?
Tube Fittings has been specifically designed for use on instrumentation, process and control systems, together with equipment employed in chemical, chromatography, petroleum, power generation and pulp & paper plants.
Double Ferrule Compression Fittings are manufactured to stringent quality control program and standards which assure the highest quality available in the industry. We are a global industry leading provider of fitting solutions.
Advantages of Venus Engineerings brand Double Ferrule Compression Fittings
